Aggressive and Productive Grinder
Our 6600 Wood Hog horizontal grinder is an aggressive, productive grinder ideal for processing wood waste, land clearing and storm debris into saleable products. The 6600 Wood Hog’s 66" x 50" (167.64 cm x 127 cm) infeed opening processes large material with ease, and engine options up to 1200 HP (894 kW) gives you plenty of power.
The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency. The hydraulic hinged door allows quick and easy access for changing grates. A proven drive line protection system protects against catastrophic damage from contaminants. Electric power is available as an option for a cleaner and often more cost‑effective way to process organic waste.
Please fill out the information below and a member of our team will be in touch with you!
Key Features
The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
The hydraulic hinged door allows quick and easy access for changing grates.
A proven drive line protection system protects against catastrophic damage from contaminants.
Electric power is available as an option for a cleaner and often more cost‑effective way to process organic waste.

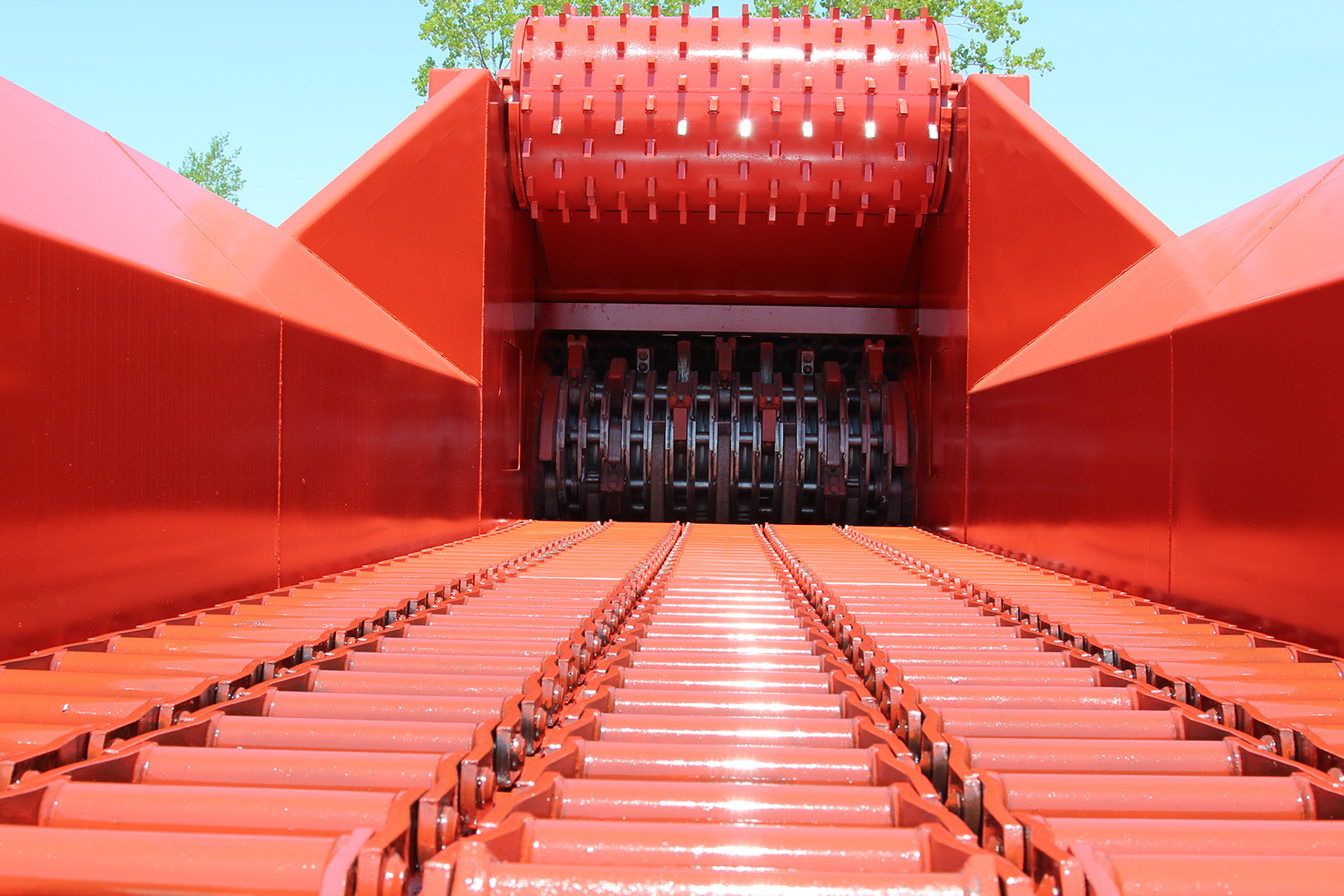

Variable speed infeed system consists of one 36" (91.44 cm) diameter top compression feed roll with internal drive and a 17'6" long x 64" (5.3 m x 162 cm) wide live floor equipped with five strands of WDH‑120 chain in a staggered configuration
42" x 66.625" (106.68 cm x 169.2 cm) hammermill system constructed of heavy‑duty 28" (71 cm) diameter rotor, (18) 1.375" (3.5 cm) thick machined rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 9" (22.9 cm) diameter shaft with 5.19" (13.18 cm) bearings and eight 2.5" (6.35 cm) hammer retaining rods. Hammermill pattern has (18) 2.25" (5.7 cm) balanced forged steel hammers, (18) 3.625" (47.3 cm) wide double‑edged replaceable inserts and 18 forged rakers
Automatic reversing fan system
Dust suppression system
Hydraulically operated debris containment door
Discharge system consists of a hydraulically driven, horizontal 48" wide x 19' (121.92 cm x 5.79 m) long aggregate belly belt conveyor discharging onto a 40" (101.6 cm) wide stacking conveyor with hydraulic fold for transport
Remote control with tethered back‑up system
Magnetized end pulley with collecting slide tray for ferrous metal removal
11‑hp (8.2 kW) air compressor with lockable enclosure
Specifications
6600 Wheeled Wood Hog Horizontal Grinder
Length (Transport) 44'1"
Length (Operating) 68'10"
Height (Transport) 13'6"
Height (Operating) 19'3"
Width 11'10"
Gross Weight (approx) 91,440 lb
Axle Weight (approx) 59,440 lb
Tonque Weight (approx) 32,000 lb
Engine CAT
Horsepower 1,125 to 1,200 HP
Fuel Capacity 430 gallons
Hydraulic Oil 238 gallons
Infeed Opening 66" x 50" m
Screen Area 5,661 sq in m
Brakes Air
Towing Arrangement Fifth Wheel
6600 Track Wood Hog Horizontal Grinder
Length (Transport) 44'9"
Length (Operating) 67'1"
Height (Transport) 11'11"
Height (Operating) 18'6"
Width 11'11"
Gross Weight (approx) 109,120 lb
Axle Weight (approx) 59,440 lb
Tongue Weight (approx) 32,000 lb
Engine CAT
Horsepower 1,125 - 1,200 HP
Fuel Capacity 430 gallons
Hydraulic Oil 238 gallons
Infeed Opening 66" x 50"
Screen Area 5,661 sq in
Track SS40 Strickland Undercarriage
-
6600 Wheeled Wood Hog Horizontal Grinder
Length (Transport) 13.69 m
Length (Operating) 20.98 m
Height (Transport) 4.11 m
Height (Operating) 5.87 m
Width 3.61 m
Gross Weight (approx) 41,460 kg
Axle Weight (approx) 26,945 kg
Tonque Weight (approx) 14,515 kg
Engine CAT
Horsepower 88 to 894 kW
Fuel Capacity 1,628 L
Hydraulic Oil 901 L
Infeed Opening 167 cm x 127 cm
Screen Area 36,522 sq cm
Brakes Air
Towing Arrangement Fifth Wheel
6600 Track Wood Hog Horizontal Grinder
Length (Transport) 13.63 m
Length (Operating) 20.44 m
Height (Transport) 3.63 m
Height (Operating) 5.6 m
Width 3.63 m
Gross Weight (approx) 41,460 kg
Axle Weight (approx) 26,945 kg
Tongue Weight (approx) 14,515 kg
Engine CAT
Horsepower 838 to 894 kW
Fuel Capacity 1,628 L
Hydraulic Oil 901 L
Infeed Opening 167 cm x 127 cm
Screen Area 36,522 sq cm
Track SS40 Strickland Undercarriage
